Automatic Granule Beans Legume Rice Packing Machine
Machine Description：
This VFFS automatic packing machine with customized dosing system, the volume cups enable granule product automatically feeding, metering, filling and packing into roll film form bags.
It is widely use in food industry for grains, rice, nuts, beans, sugar, salt, MSG, ect. Machine can make various kinds of bag types like pillow bag, gusset bag, quad seal stand up bag in different size by different models.
Machine Parameter：
| Parameter Sheet | ||||
| Model | ZEL-420V | ZEL-520V | ZEL-620V | ZEL-720V |
| Film width | 150-420mm | 180-520mm | 220-620mm | 260-720mm |
| Bag width | 65-200mm | 80-250mm | 100-300mm | 120-350mm |
| Bag length | 60-300mm | 80-400mm | 100-450mm | 120-500mm |
| Packing speed | 10-80 bag/min | 10-60 bag/min | 10-40 bag/min | 10-30 bag/min |
| Filling accuracy | +/-1%(per product) | +/-1%(per product) | +/-1%(per product) | +/-1%(per product) |
| Power supply | 2200V 50/60Hz, 4KW | 220V 50/60Hz, 4.5KW | 220V 50/60Hz, 5KW | 220V 50/60Hz, 6KW |
| Air supply | 0.6-0.8MPA | 0.6-0.8MPA | 0.6-0.8MPA | 0.6-0.8MPA |
Machine Features：
Vertical packaging machines, also commonly known as vertical filling forming sealing (VFFS) machine, are highly efficient and automated packaging equipment. Starting from a roll of film, it automatically complete a series of processes including bag making, metering, filling, sealing, and cutting.
①High Efficiency and Automation
Vertical packaging machines achieve full automation from roll film to finished bags, with extremely high production speeds of 30-80 bags/min with continuous production time of 12 hours a day without interruption, meeting the needs of large-scale. The entire process requires only a small amount of manual labor, which reducing labor costs and labor intensity.
②Precise Metering and Secure Sealing
The equipment can be equipped with various high-precision metering system that depending on material characteristics (e.g., granules, powders, liquids), options such as combination scales, screw scales, measuring cups, or liquid pumps can be selected to achieve high-precision metering.
Horizontal and vertical sealing temperatures can be independently and precisely controlled by PID (temperature difference within ±1℃), adapting to various packaging materials such as PE, PP, and composite films, ensuring a smooth, secure, and leak-free seal.
③Diverse Packaging Forms and High Adaptability
Vertical packaging machines offer high flexibility, adapting to different product and packaging needs. By changing different forming devices, various bag types can be easily produced, including pillow bags, gusset bags, quad seal stand up bags, ect.
Additional functions such as coding machines, nitrogen-filled preservation, easy-tear openings, and venting holes can be easily integrated to meet diverse market demands.
④Intelligent Control and Convenient Operation
Modern vertical packaging machines generally adopt advanced control systems, simplifying operation and maintenance. Equipped with a touchscreen, parameter settings, fault diagnosis, production counting, and other functions are clearly displayed, making operation simple and intuitive. Besides, an intelligent "no packaging without material" detection function to avoid empty bags and reduce waste.
Machine Details：

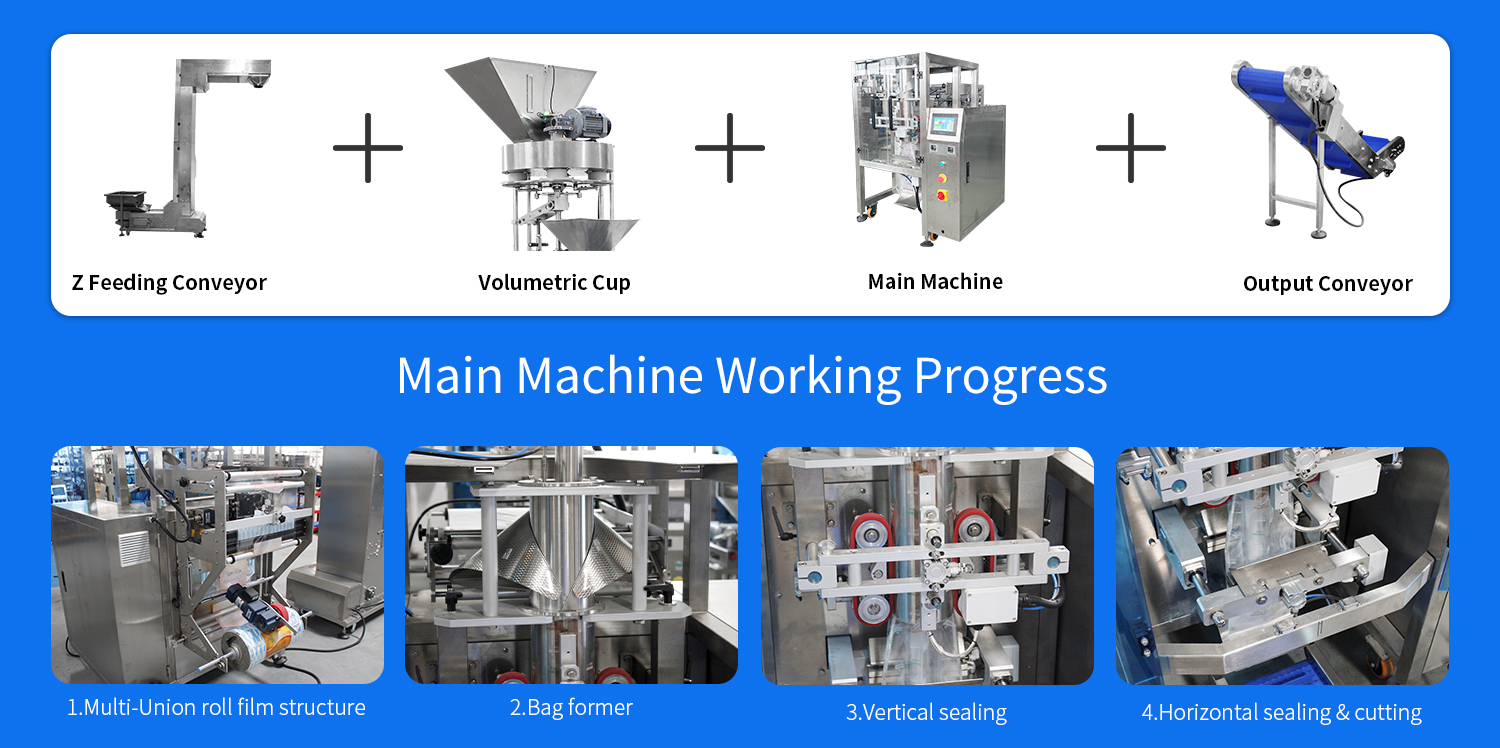

Machine whole set consists of feeding conveyor, volume cup filling system, roll film bagging machine and output conveyor.
①Feeding conveyor with vibrating storage hopper to feed product up to the weighing system continuously.
②Customized volume measuring cup system made per granule product density to achieve high filling accuracy of +/-1%.
③Roll film bagging machine automatically completes the entire process of product metering and filling, bag making, sealing, and cutting.
④Output conveyor to convey finished products quickly to avoid piling up and connect to subsequent processes for production continuity.
Company profile:
Foshan ZHIEN Machinery Co., Ltd. is a 15 years old packaging machinery production and R&D enterprise, Focusing on providing customers with customized automated packaging solutions.
The factory is equipped with six major production workshops, covering sheet metal processing, machining workshops, and assembly workshops for various types of packaging machinery. To achieve customers' requirements for equipment quality and delivery time from the source of production. Each production workshop adopts a strict quality management system to test and monitor each production link to ensure that the equipment meets customer requirements and standards.
In addition, ZHIEN Machinery has an experienced and skilled professional team. They are familiar with machining technology and processes, which can provide professional advice and solutions according to customer needs.
ZHIEN Service:
Pre-sales Service: Customized solutions per packaging request
1. Provide technical consultation and testing services before sales
2. Professional engineering team supports customized solutions
3. Support ODM and OEM services
After-sales Service: Rapid Response, Lifetime Support
1. After-sales customer service warranty service
2. Overseas after-sales service for installation and commissioning
3. Online and offline technical maintenance training services
