Capsules Tablets Multi-channel Counting Packing Machine

Machine Description：

This multi-channel counting packing machine with customized filling system, the multi-channel fiber optical counting system, enable product automatically feeding, counting, filling and packing into roll film form bags.

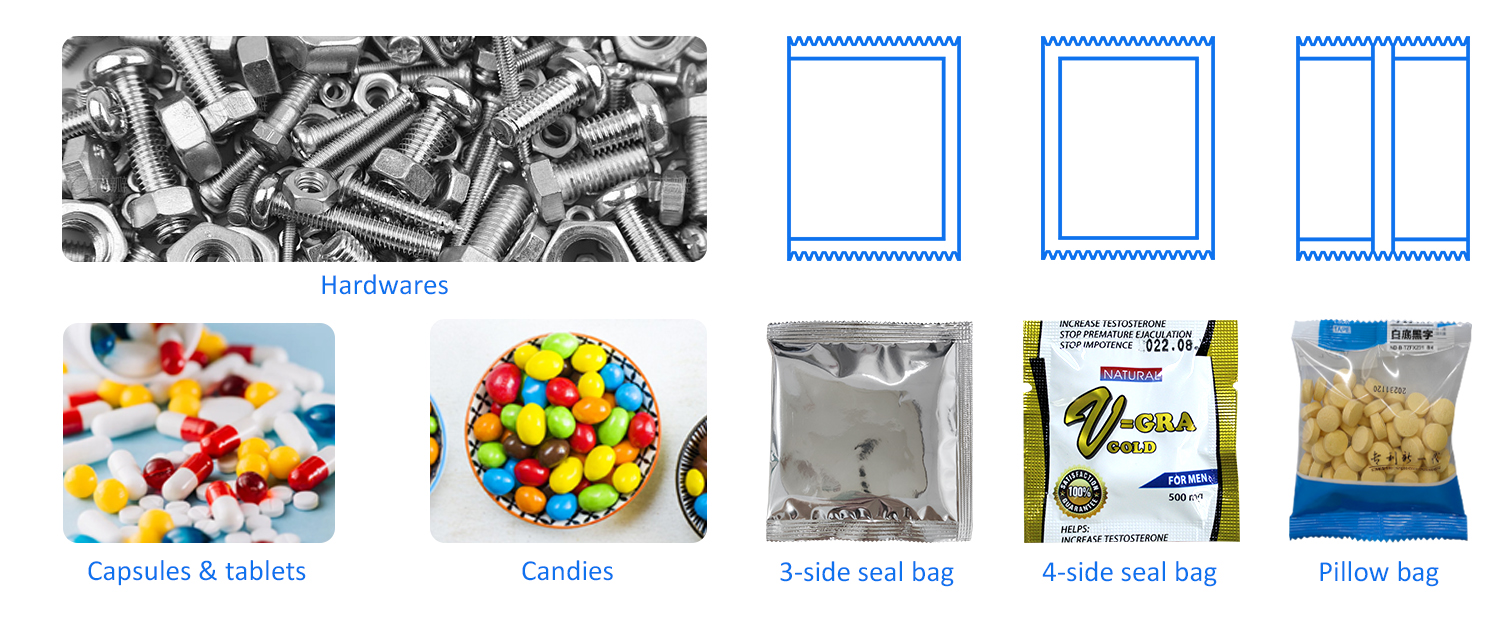

It is specifically designed for small granular or regular or irregularly shaped products such as capsules, tablets, candies, nuts, bolts, hardware parts, ect. Machine can make various kinds of bag types like pillow bag, 3 side seal bag, 4 side seal bag, linking bags in different size by different models.

Machine Parameter：

Machine Features：

Multi-channel counting and packaging machines are highly efficient automated equipment in industries such as hardware, auto parts, food and pharmaceutical. The core features are mainly reflected in the following aspects:

①High-efficiency multi-channel parallel operation

As the name suggests, its biggest feature is that it has multiple (usually 4 to 12 channels) independent vibrating feeding channel. This means the machine can process multiple different product simultaneously in a single run. For example, when packaging a set of furniture parts, it can simultaneously count screws, corks, expansion tubes, and wrenches, and automatically aggregate them into one packaging bag, greatly improving packaging efficiency.

②High flexibility and compatibility

Multi-channel packaging machines are highly adaptable to different materials. Whether it's regular capsules and tablets, or irregularly shaped plastic parts and special-shaped hardware, as long as the corresponding vibratory feeding channel are adjusted, they can be smoothly conveyed and counted. Furthermore, machine parameters (such as target quantity, bag length, etc.) can usually be easily set and saved through a touchscreen interface, making adjustments very convenient when changing product specifications.

③Fully Automated Packaging Process

The equipment integrates a series of functions including feeding, counting, bag making, filling, sealing, cutting, and printing date/batch numbers. From bulk material input to finished packaged bag output, the entire process requires no manual intervention, significantly reducing reliance on manual labor and lowering labor costs for enterprises.

④Space-saving and compact structure

Although they have multiple channels, these machines are usually designed to be compact and efficient, integrating multiple independent counting units onto a single rack. This significantly saves valuable workshop floor space compared to placing multiple single-channel machines.

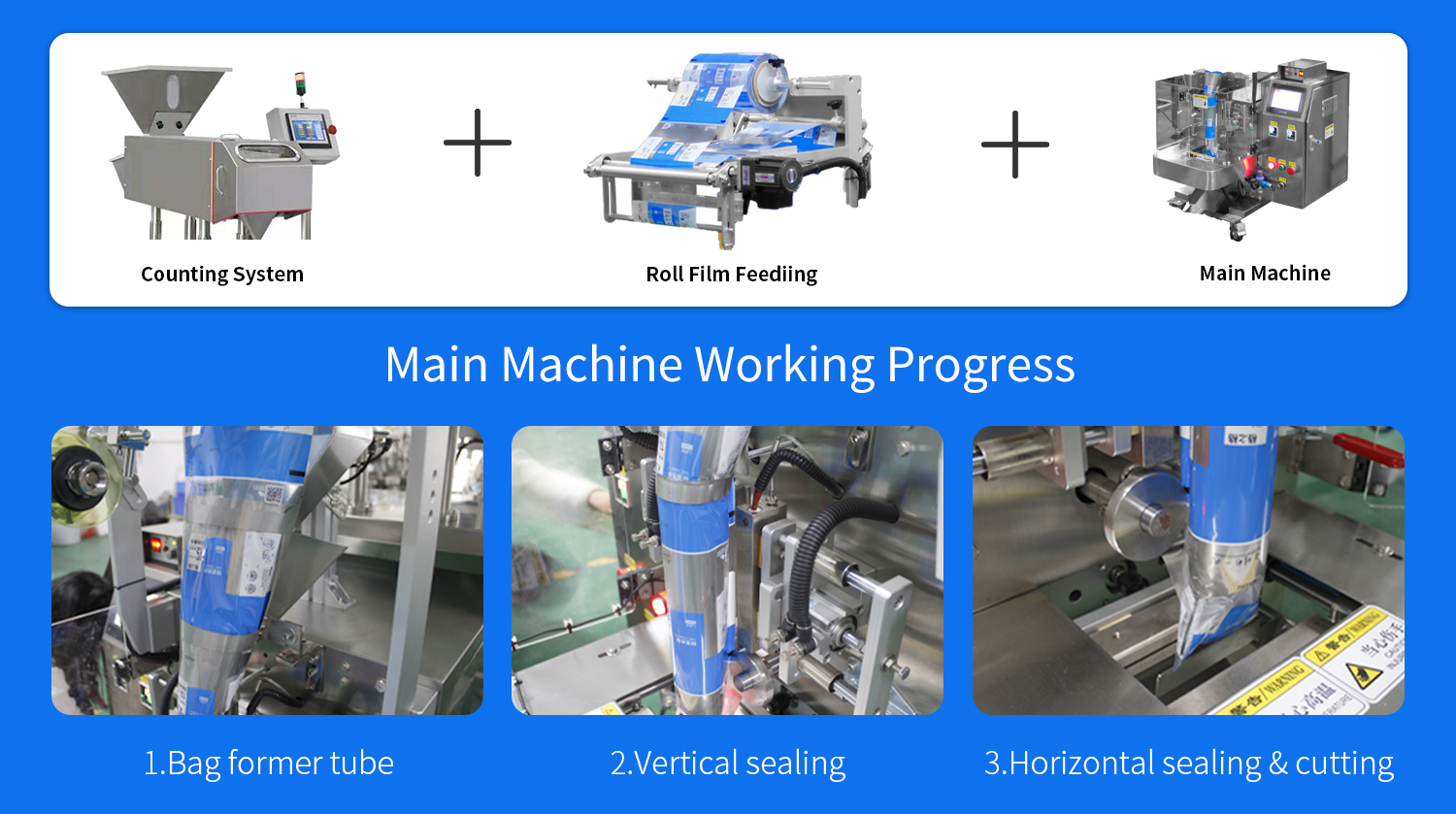

Machine Details：

Machine commonly consists of multi-channel counting system and the vertical bagging machine.

① Multi-channel system is customized made per product shape to auto feeding with fiber optical or visual counting system for product auto counting.

②Vertical bagging machine automatically completes the entire process of roll film bag making, sealing, and cutting.

Company profile:

Foshan ZHIEN machinery Co., Ltd was established in 2014.

As an experienced automation equipment manufacturer, we were engaged in processes of integrating machine design, R&D, production, sales and maintenance.

We focus on the unmanned packaging environment and provide customized packaging solutions for different industry of food, daily chemical, hardware, healthcare, ect.

Technical Advantages：

Dedicated Design for Tablets & Capsules

This multi-channel machine is tailor-made for counting and sachet packaging of various tablets, hard capsules and soft capsules. It adapts well to different sizes and shapes of solid medicines, ensuring smooth feeding without jamming or damage.

Multi-channel High-efficiency Counting

Equipped with independent multi-channel counting structure, multiple groups work synchronously to greatly improve packaging speed and daily output.

Adopts advanced photoelectric sensing technology with ultra-high counting accuracy. It effectively avoids miscounting, missing or repeated counting, fully meeting the strict quantity standards of pharmaceutical and health product packaging.

Gentle Material Handling Structure

Optimized feeding and conveying design reduces friction and collision. It prevents tablets and capsules from scratching, cracking or surface wear, and keeps products intact all the time.

Stable Sealing for Airtight Packaging

Constant temperature heat sealing system forms flat, firm and wrinkle-free sealing edges. Excellent moisture-proof and dust-proof performance protects internal medicines from dampness and pollution, extending shelf life effectively.

FAQ:

Q1: Is the counting result accurate?
