ground-coffee-drip-coffee-bag-packaging-machine
Machine Description：
This drip coffee bag packaging machine with customized dosing system, the auger filler or volume cup filler enable ground coffee automatically feeding, metering, filling and
packing into roll film form bags.
Its standard package weight around 8-15g for per sachet with non-woven fabric inner bag material with aluminium composite foil material as outer bag material. This special bag material request machine with two sealing system of ultrasonic sealing and heat sealing.
Machine Parameter：
| Parameter Sheet | |
| Model | ZE-DC200V |
| Bag type | Dirp filter bag with outer envelope |
| Inner bag size | 70-74mm length * 90mm width |
| Outer bag size | 120mm length * 100mm width |
| Packing speed | 20-60 bag/min |
| Filling range | Customized:10-12g |
| Filling accuracy | +/-1% |
| Power supply | AC 220V/50Hz/3.7kw |
| Air supply | 0.6Mpa |
Machine Features：
Drip coffee bag packaging machines are specialized equipment designed for packaging needs requiring "special non-woven materials, freshness preservation, and precise measurement." Compared to ordinary coffee bean packaging machines, they possess the following distinct core features:
① Unique Double-layer Packaging & Ultrasonic Sealing Technology
This machine supports one-piece integrated forming for drip coffee inner and outer bags. It automatically finishes bag forming, coffee filling and full sealing for corn fiber/non-woven inner filter bags and aluminum foil/metallized film outer protective bags.
Adopting professional ultrasonic sealing for inner filter bags, it bonds fabric via high-frequency vibration. Different from traditional hot sealing, it causes no material scorch or burn, avoids fiber falling while brewing, keeping bags clean and neat.
Built-in nitrogen flushing function isolates oxygen and moisture. It prevents coffee oxidation and moisture caking, extending coffee shelf life up to 12+ months with firm outer bag sealing.
② High Filling Accuracy & Precise Bag Positioning
Designed for 5g-15g small-dose drip coffee packing, it equips screw volumetric or cup measuring dosing system. The filling error is controlled within ±0.2g to guarantee uniform net weight for each coffee bag.
Equipped with optical fiber location system, it calibrates drip bag position automatically. It effectively solves bag offset, folding and missing problems during production, securing high finished product yield.
③ Full Automatic Operation
One-stop automatic working from film feeding, date coding, coffee dosing, inner ultrasonic sealing, outer heat sealing to finished bag discharging. It cuts down manual dependence and labor cost greatly.
④ Food-grade Material & Detachable Easy-clean Structure
All coffee contact parts adopt polished SUS304 stainless steel, compliant with GMP and food safety standards without sanitary dead corners. Modular split structure enables quick disassembly for daily cleaning, lowering material cross-contamination risks.

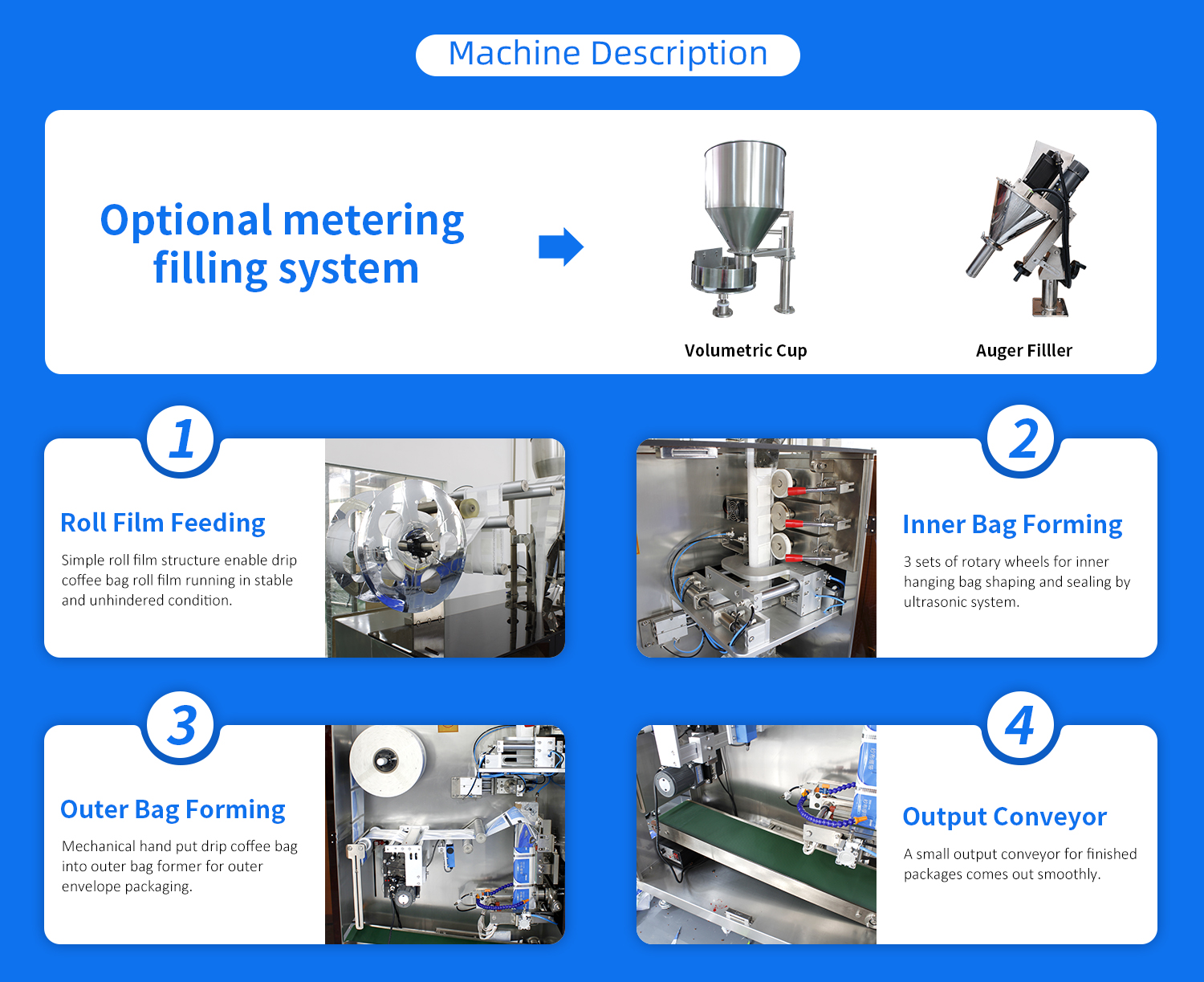

Machine Details：
Machine commonly consists of auger screw or volume cup filling system and the inner bag with outer bag packaging machine.
①Customized auger filler by precisely controlling the rotation number of the motor to dispense a specific volume of powder with high precision. Or using volume measuring cup system that made per the ground coffee density to achieve high filling accuracy of +/-1%.
②The inner bag with outer bag packaging machine automatically completes the entire process of product metering and filling, inner and outer bag making, sealing, and cutting.
Company profile:
Foshan ZHIEN Machinery Co., Ltd.established in 2014 and located at Foshan city of GuangDong province, China.It is a high-tech enterprise specializing in the R&D, manufacturing, and sales of high-end packaging machinery. With over 15 years of experience in the industry, we are committed to providing global customers with efficient, precise, and intelligent one-stop packaging solutions.
Technical Advantages：
Dedicated Design for Hanging Ear Coffee Bags
Professionally tailored for drip coffee bag packaging. Optimized feeding and sealing structure fits special bag shape perfectly.
Stable Quantitative Filling Performance
Equipped with high-precision metering system to control coffee powder weight accurately. Consistent dosage for each bag complies with unified commercial packaging standards.Sealing edge is firm and compact, effectively isolating moisture and air. It locks coffee original flavor and prolongs product shelf life.
Dust-proof & Clean Production Structure
Closed feeding design prevents powder floating and scattering, reduces raw material waste and keeps production workshop hygienic and tidy.
FAQ:
Q1: What product does this machine mainly pack?
A: It is specially used for automatic packaging of hanging ear drip coffee bags.
Q2: Can it keep the hanging ear bag complete and beautiful?
A: Yes. Specialized structural design avoids bag distortion and damage, presenting neat finished bags.
Q3: Is the filling weight accurate enough?
A: Sure. High-precision metering system ensures stable weight with tiny error.
Q4: Does the sealing work well for flavor preservation?
A: Absolutely. Tight sealing prevents moisture and oxidation, well retaining original coffee aroma.
Q5: Is it easy to switch different packaging specifications?
A: Very convenient. Saved formulas support one-key quick adjustment on touch screen.
