Honey Spoon Filling and Sealing Machine

Machine Description：

This filling sealing machine is a highly automated continuous operation equipment that can automatically complete the entire packaging process, including spoon placement, honey filling, foil sealing and dispensing.

This honey spoon filling sealing machine with customized filling pump is specifically designed for high-viscosity materials such as honey, pear syrup, and jam.

Machine Parameter：

Machine Features：

The honey spoon filling and sealing machine is an automated packaging device specifically designed for high-viscosity materials such as honey, pear syrup, and jam. It not only provides convenient "one spoon, one measurement" packaging but also boasts unique technical features in anti-drip, precise metering, and hygienic sealing:

①Filling System for High-Viscosity Materials

Anti-drip and Anti-stringing Design: Honey and other materials are prone to stringing and dripping. Professional equipment is equipped with special anti-drip devices on the filling nozzle (such as pneumatic anti-drip and back-suction functions) to ensure a clean cut-off after filling, preventing contamination of the seal and ensuring a clean finished product appearance.

Stirring and Heating Hopper: To prevent high-viscosity honey from clumping or becoming poorly fluid in the hopper, the equipment is typically equipped with a hopper featuring a stirrer and heating function, ensuring the material remains in a uniform and easily pumpable flow state.

Precise Servo-Driven Quantitative Filling: Utilizing a servo motor-driven quantitative cylinder or precision pump for filling, the machine accurately controls the weight of each scoop (common specifications include 3g, 7g, 10g, etc.), with an extremely low error rate (typically controllable within 1%), effectively reducing raw material waste.

②Highly Automated Packaging Process

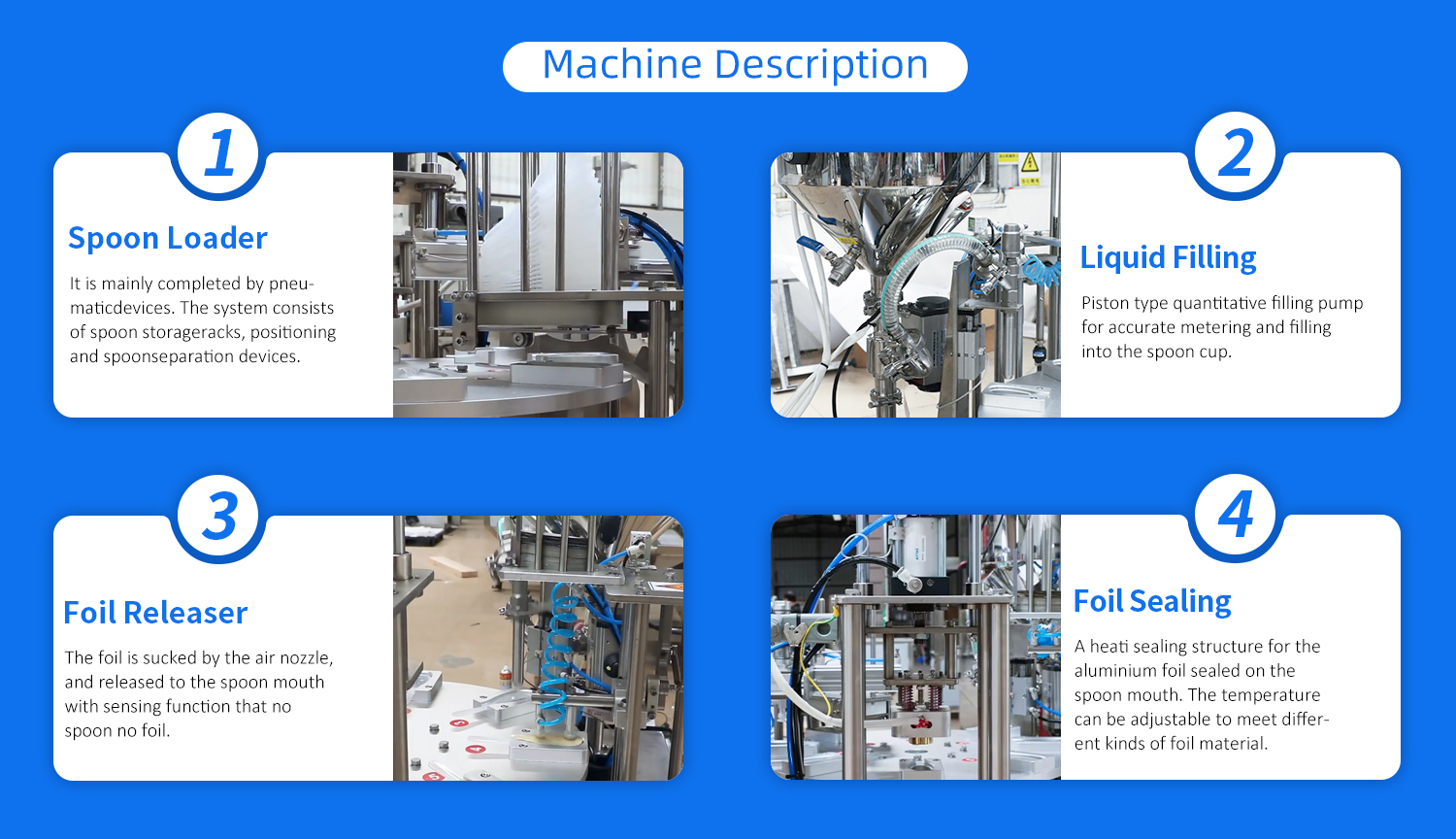

Fully Automated Production Line Operation: The equipment automatically completes the entire process, including empty scoop arrangement and feeding (via a vibratory feeder or automatic scoop dropping device), quantitative filling, lamination (aluminum foil or composite film), heat sealing, and finished product punching and separation.

Flexible Capacity and Structure: Commonly available structures include rotary and linear types. Capacity ranges widely, from entry-level models with 600-1500 scoops per hour to high-speed models with 3000-6000 scoops per hour. Some machines can also automatically weave the sealed scoops into rolls for convenient subsequent packaging.

Robust Heat-Sealing Technology: Employing an independently temperature-controlled heat-sealing device, the film is securely sealed to the edge of the spoon, completely eliminating leakage and ensuring the hygiene and safety of the product during transportation and storage.

③Intelligent Control and Hygienic Design

PLC Touchscreen Control: Equipped with a user-friendly interface, parameter settings (such as filling volume, temperature, and speed) are intuitive and quick. It features a self-diagnostic function, directly displaying the cause of the fault on the screen for rapid troubleshooting.

Food-Grade Hygiene Standards: All parts of the machine that come into contact with materials are typically made of food-grade stainless steel (such as SUS304 or 316), meeting GMP hygiene requirements. The equipment is mostly designed for easy cleaning, either closed or open, facilitating daily disassembly, cleaning, and maintenance, reducing the risk of bacterial contamination.

Excellent Compatibility: In addition to honey, through simple parameter adjustments and component replacements, the same machine can usually be used for packaging various liquid or paste-like foods such as chocolate sauce, peanut butter, cream, jam, and pastes.

Machine Details：

Machine commonly consists of liquid pump filling system and the rotary filling sealing machine.

①Customized servo motor-driven quantitative cylinder or precision pump for filling the product with high accuracy of +/-1%.

②The rotary filling sealing machine automatically completes the entire process of capsule placement, coffee filling, nitrogen filling, capsule sealing and dispensing.

Company profile:

Foshan ZHIEN Machinery Co., Ltd. is a professional manufacturer focused on R&D, production and global sales of automated packaging production lines. We own standardized workshops, advanced precision processing equipment and a complete quality control system.

We specialize in designing and manufacturing full set arranging and packaging lines exclusively for candies. Our integrated production lines are widely applied in confectionery factories, snack manufacturers and food processing enterprises worldwide. Adhering to technological innovation and strict quality standards, we provide turnkey packaging solutions as well as full-cycle pre-sales and after-sales services. We strive to be your most reliable long-term partner for candy production and packaging.

Technical Advantages：

Professional Design for Disposable Honey Spoons

This machine is specially optimized for the structural features of disposable honey spoons and the fluid property of honey. It realizes automatic spoon feeding, quantitative honey filling and integral sealing, ensuring smooth operation without overflow, dripping or material waste.

High-precision Quantitative Filling System

Adopts dedicated liquid metering structure suitable for viscous honey. It delivers stable and accurate filling volume for each spoon, keeping consistent net content and fully meeting commercial food packaging standards.

Leak-proof & Drip-proof Structure

The filling nozzle is designed with anti-drip function. It effectively stops honey from dripping during material switching and operation, keeping the machine and working area clean while reducing raw material loss.

Excellent Sealing Performance

Equipped with constant-temperature heat sealing modules. The sealing edges are firm, flat and tight. It features great moisture-proof, leakage-proof and fresh-keeping effects, locking honey’s original flavor and extending the shelf life of finished products.
