Multi Lane Granule Sugar Stick Packing Machine

Machine Description：

This multi lane packing machine with customized dosing system, the volume cup filler enable granule product automatically feeding, metering, filling and packing in multi lane sachets via roll film.

It is widely use in food, pharmaceutical, daily chemical industry for granule product like sugar, salt, grains, medical granules, ect. Machine can make various kinds of bag types like stick bag, 3 side seal bag, 4 side seal bag, irregular shaped bag in different size by different models.

Machine Parameter：

Machine Features：

Multi lane packing machines are highly efficient, intelligent, and automated packaging equipment that widely used in the food, pharmaceutical, and daily chemical industries. Their core features are mainly reflected in the following aspects:

①Extremely High Production Efficiency and Capacity

Parallel Processing: By operating multiple lanes simultaneously (such as 4, 8, or even 12 lanes), the output per unit time is several times that of traditional single lane machines. For example, some high-speed models can produce up to 1000 bags per minute.

Continuous Operation: It can automatically complete all processes from metering, bag making, filling, sealing, batch number printing to finished product output, making it ideal for large-scale mass production needs.

②High Degree of Automation and Intelligent Control

Precise Control: The entire machine typically uses a PLC and servo motor drive, combined with a human-machine interface touchscreen, ensuring smooth operation and highly accurate synchronous positioning.

Convenient Operation: When changing product specifications, preset parameters can be directly recalled on the screen, eliminating the need for cumbersome resetting or mold replacement, greatly reducing debugging and downtime.

Safety Warning: Equipped with multiple automatic alarm and protection functions (such as film depletion warning, fault shutdown, etc.), it can promptly detect and eliminate problems, reducing material loss.

③Precise Metering and Wide Material Compatibility

Independent Metering: Each filling mechanism can be independently adjusted to ensure consistent filling volume for each bag with extremely low error (the error for some high-precision liquids can be controlled within ±1%).

Strong Compatibility: Adaptable to various material forms; simply change the corresponding metering device of volume cups for granule, auger screw for powder and metering pump for liquid.

④Superior Packaging Quality and Aesthetics

Automatic Alignment: Employs a photoelectric tracking system that automatically identifies color marks on the packaging bag, ensuring precise alignment of double-sided printing.

Excellent Sealing: Roller heat sealing or modular horizontal sealing technology not only ensures a smooth and aesthetically pleasing seal but also guarantees excellent sealing, preventing leakage or moisture absorption.

User-Friendly Design: Easy-tear openings and rounded corners can be cut to meet specific needs, greatly enhancing the end-user experience.

⑤Cost and Space Saving

Labor Savings: Centralized automated control significantly reduces reliance on operators, lowering labor costs.

Packaging Material Savings: Advanced longitudinal sealing technology allows for extremely narrow sealing widths (e.g., 3mm), effectively saving packaging film material.

Compact Structure: Compared to operating multiple single-row machines, a single multi-row packaging machine achieves the same production capacity with a smaller footprint and lower energy consumption.

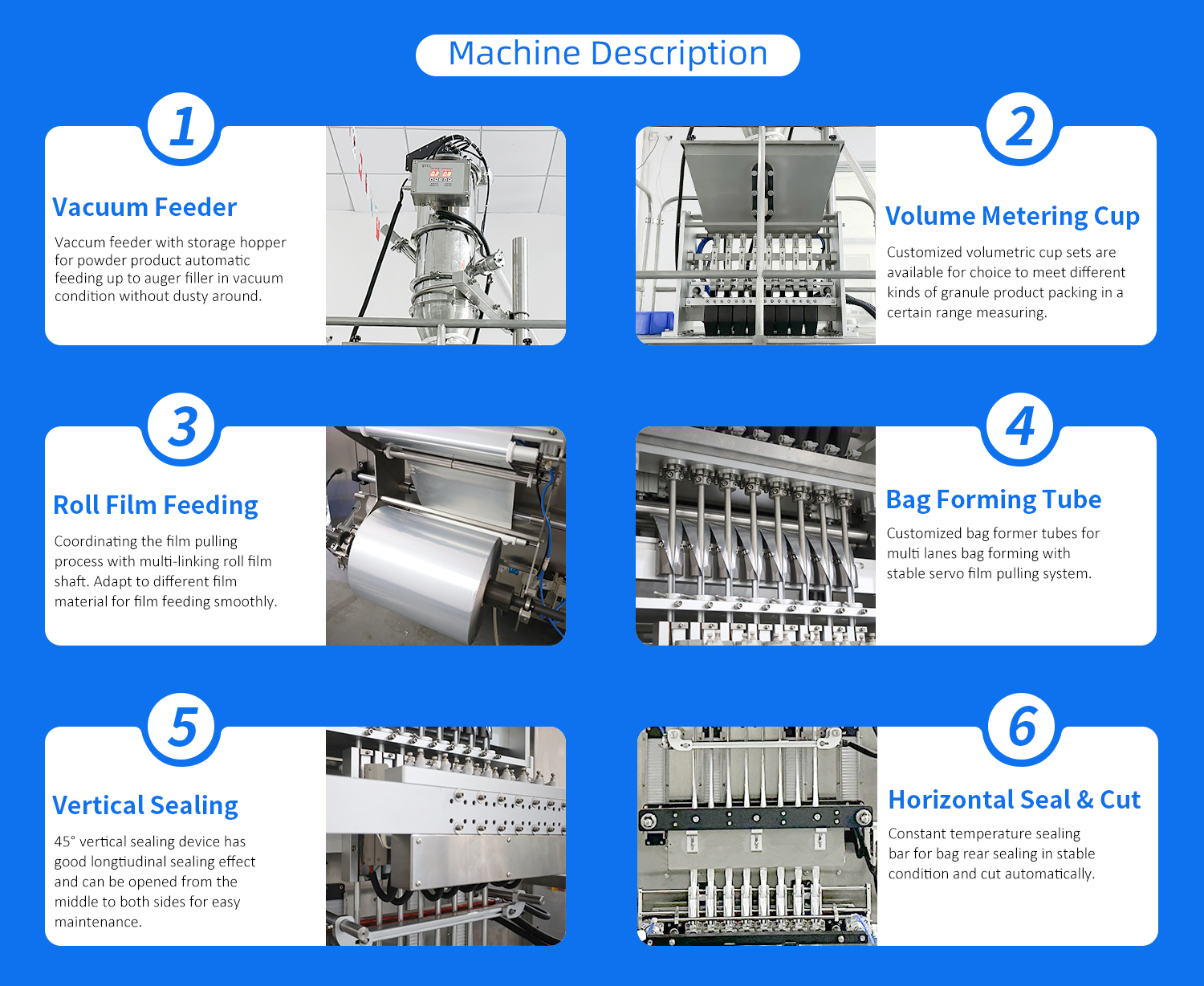

Machine Details：

Machine commonly consists of volume cup filling system and the multi lane bagging machine.

①Customized volume measuring cup system made per granule product density to achieve high filling accuracy of +/-1%.

②Multi lane bagging machine using an independent film guiding device and a collar forming device, the wide film is precisely folded and divided into multiple channels to form a cylindrical bag of a specific size.

Company profile:

Foshan ZHIEN Machinery Co., Ltd. was founded in 2014, located in Foshan City, Guangdong Province, China. We are a professional high-tech enterprise focusing on R&D, production and global sales of automated packaging equipment.

Our products have been exported to more than 100 countries and regions. We always insist on technology innovation and strict quality control, provide full-set pre-sales solution design and perfect after-sales support, and strive to become your most trusted long-term packaging equipment partner.

Corporate Social Responsibility：

Strictly Guard Health Product Safety

We abide by high-standard manufacturing specifications for health care packaging equipment, provide safe, hygienic and reliable automated packaging solutions, and protect product quality and end-user health safety.

Energy-saving & Low-carbon Green Production

Optimized power distribution and mechanical transmission structure reduce overall energy consumption. Dust-proof and loss-reducing design effectively save raw materials, helping enterprises realize energy-saving and eco-friendly production mode.

Promote Intelligent Upgrading of Health Industry

High-efficiency multi-lane automatic packaging replaces repetitive manual work, greatly improve production efficiency and product consistency, and accelerate standardized and intelligent development of supplement processing industry.

Standardized Safe Enterprise Operation Management

The company implements complete safety operation regulations, build safe and comfortable working environment for employees, and maintain stable, orderly and sustainable enterprise development.

Integrity Operation & Long-term Win-win Cooperation

We adhere to sincere business tenet, supply cost-effective high-quality equipment and full-cycle supporting services, and establish stable mutually beneficial partnership with global health product manufacturers and distributors.

FAQ:
