Sachet Cat Treats Strip Wet Pet Food Packing Machine

Machine Description：

This sachet packing machine with customized dosing system, the liquid filling pump enable liquid product automatically feeding, metering, filling and packing into roll film form bags.

It is widely use in food and daily chemical industry for liquid product like paste, honey, syrup, ketchup, wet cat food, mouthwash, ect. Machine can make various kinds of bag types like three-side seal bag, back seal (pillow bag), and four-side seal bag . High-end models also support punching and cutting rounded corners or irregularly shaped bags.

Machine Parameter：

Machine Features：

Rounded corner clamp-and-pull packaging machines are currently the mainstream equipment in the market for achieving high-end, refined packaging effects. Its biggest highlight is the use of "clamp-and-pull" bag-pulling technology to replace traditional roller-pulling technology, resulting in more aesthetically pleasing rounded corner bags.

①Unique "clamp-and-pull" forming, resulting in flat, wrinkle-free bags

Balanced vertical force: The machine abandons the traditional roller-pulling film, which is prone to slippage or displacement, and instead uses a mold for vertical clamping and pulling. This method ensures very even force distribution on the packaging bag during the forming process, effectively preventing wrinkles or skewing of the bag.

Symmetrical and refined rounded corners: With precise clamping and pulling positioning, the four rounded corners cut by the machine are highly symmetrical and have smooth, rounded edges. This not only significantly improves the product's shelf appeal and perceived quality but also avoids the problem of right-angled packaging being easily scratched or punctured during transportation and stacking

②Superior Sealing Performance and Freshness Preservation Capabilities

Rigorous Heat-Sealing Process: Combined with an intelligent temperature control system, the clamping structure ensures even heating and a tight seal at the opening. Whether for powder or liquid, it achieves extremely high sealing performance, effectively isolating external oxygen and moisture, extending product shelf life.

Eliminates Powder/Liquid Leakage: Compared to ordinary models, the clamping structure offers better stability during sealing, greatly reducing the risk of powder leakage, flying powder, or liquid seepage during production.

③High Degree of Automation and User-Friendly Configuration

Fully Automated Production Line Operation: Capable of automatically completing the entire process in one go, including bag making, high-precision metering and filling, sealing, cutting, corner rounding, and counting.

Abundant Optional Functions: To enhance the user experience, these machines can typically be flexibly equipped with easy-tear devices and color mark tracking systems to ensure the integrity of printed patterns.

④High Flexibility and Wide Applicability

The sachet packing machine boasts excellent compatibility. By changing different metering devices such as screws, measuring cups, liquid pump and forming devices, it can easily adapt to different materials for granules, powder, liquid.

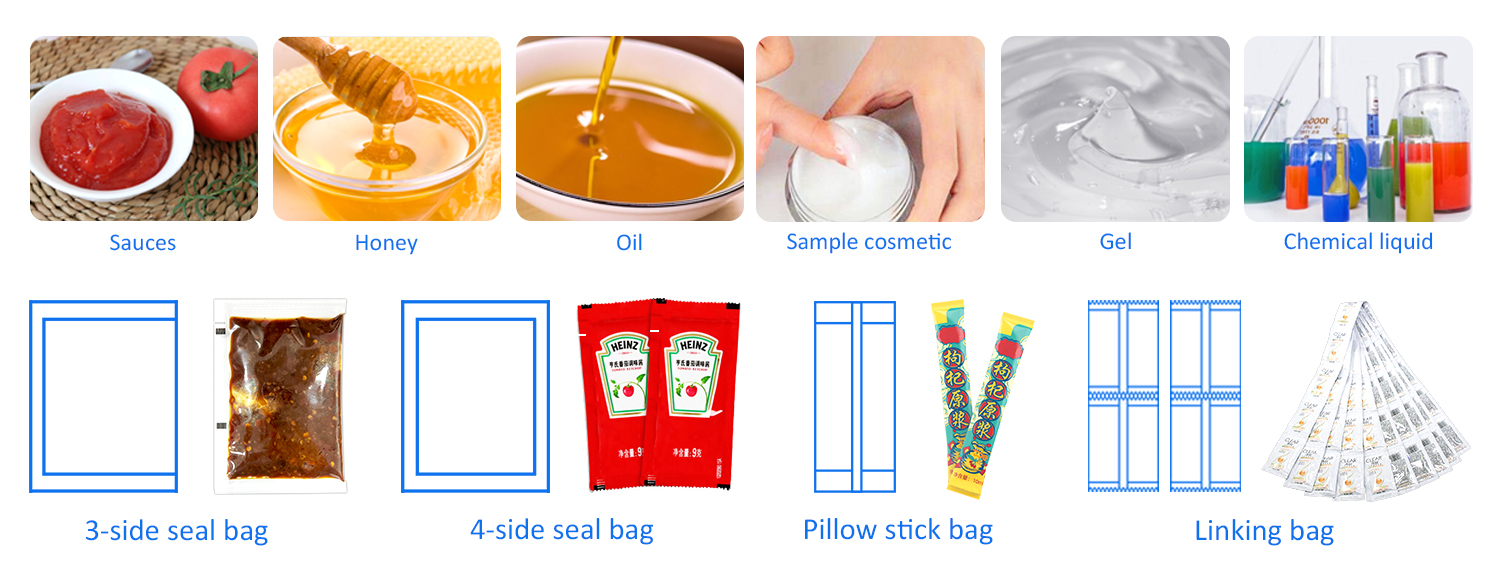

Besides, it can produce various bag types according to requirements, including pillow bag, 3 side seal bags, 4 side seal bags and rounded corners or irregularly shaped bags.

Machine Details：

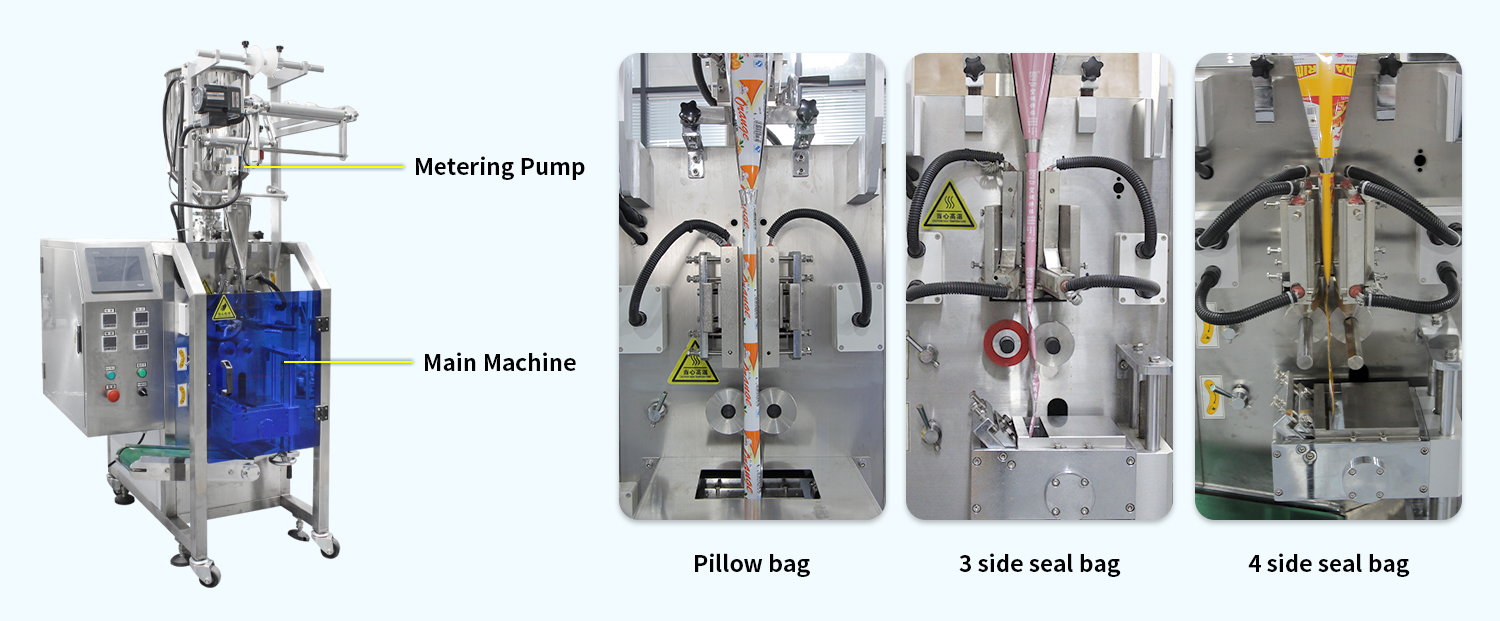

Machine commonly consists of liquid filling pump and the clamp-and-pull bagging packaging machine.

①Customized filling pump based on the periodic change of volume, using reciprocating motion to achieve fluid intake and discharge. It can meet high metering accuracy of +/-1% and a wide flow rate adjustment range. Stirring and heating device can be added in storage hopper for better liquidity.

②Clamp and pull bagging machine automatically completes the entire process of product metering and filling, bag making, sealing, and cutting for premium-quality sachets.

Company profile:

Foshan ZHIEN Machinery Co., Ltd.established in 2014 and located at Foshan city of GuangDong province, China.It is a high-tech enterprise specializing in the R&D, manufacturing, and sales of high-end packaging machinery. With over 15 years of experience in the industry, we are committed to providing global customers with efficient, precise, and intelligent one-stop packaging solutions.

Technical Advantages：

sional Design for Cat Stick Snacks

This small vertical packing machine is specially customized for soft paste cat strips and pet wet snacks. It adapts well to viscous soft material fluidity, ensuring smooth feeding without extrusion deformation, overflow or material breakage.

Compact Structure & Space-saving Layout

Mini integrated body design occupies less workshop space, easy to install and move. It is perfectly suitable for medium and small pet food factories, production workshops and small batch production demands.

Precision Piston Quantitative Filling System

Equipped with stable piston filling mechanism, the filling capacity is accurate and stepless adjustable. It keeps consistent net weight of each cat stick, unifies product specifications and meets pet food packaging standards.

Anti-extrusion & Smooth Molding Design

Reasonable forming and conveying structure effectively protect soft cat strips from squeezing and shape distortion. The finished sachets are neat in shape with uniform appearance, improving product market display effect.

High-strength Constant Temperature Sealing System

Independent temperature control heat sealing ensures flat, firm and wrinkle-free sealing edge. It features excellent leak-proof and fresh-keeping performance, effectively preventing paste leakage and extending shelf life of pet snacks.
