Soft Sweet Gummy Candy Counting Packing Machine

Machine Description：

This counting packing machine with customized filling system, the vibrating bowl with fiber optic, positioning or visual counting system enable product automatically feeding, counting, filling and packing into roll film form bags.

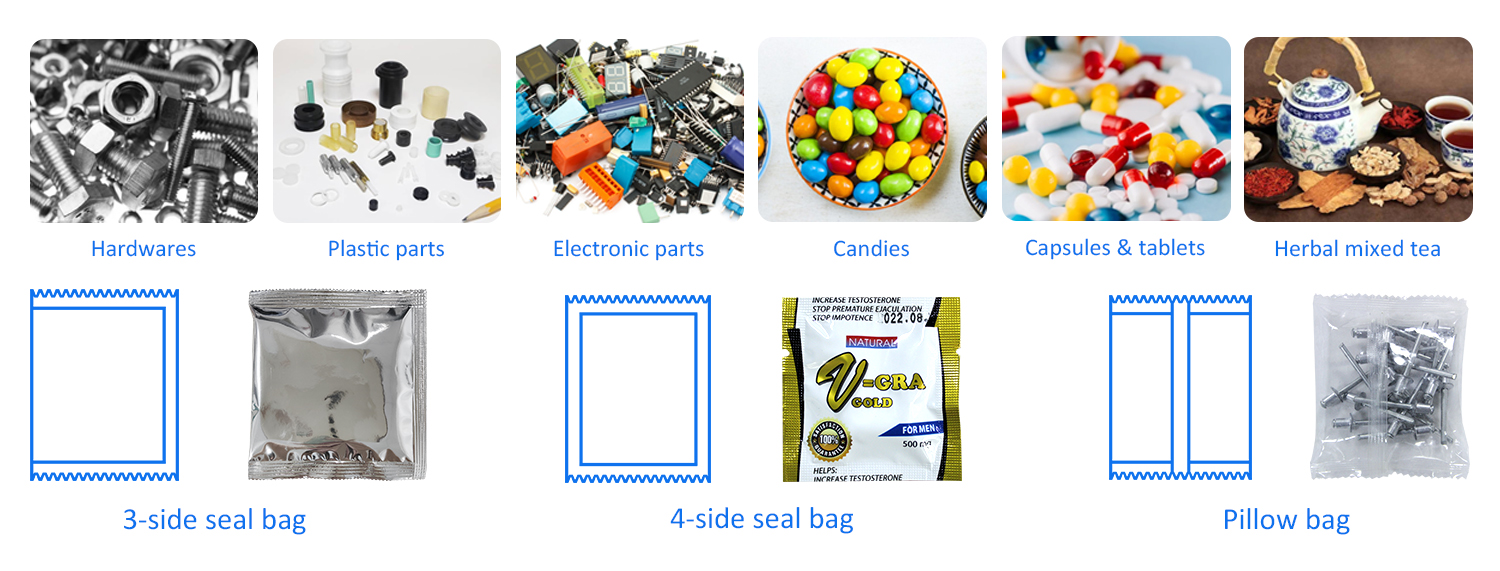

It is specifically designed for small granular or regular or irregularly shaped product such as hardware accessories, electronic components, candy, capsules and tablets. Machine can make various kinds of bag types like pillow bag, 3 side seal bag, 4 side seal bag, linking bags in different size by different models.

Machine Parameter：

Machine Features：

The counting packing machine is an automated packaging equipment specifically designed for food, hardware, electronics, pharmaceutical industry such as candy, nuts, screws, hardware accessories and tablets. Its core features are mainly reflected in the following aspects:

①Fully Automatic Integration, High Efficiency and Labor Saving

The biggest advantage of this type of machine is that it integrates the tedious manual counting and packaging processes into a one-step automated process.

One Machine Completes All Processes: It can automatically complete the entire process of material sorting and arrangement, accurate counting, bag making, filling, sealing, cutting, and printing the production date.

Saves Labor Costs: One machine can typically replace the repetitive labor of several workers (approximately 2-3 people), significantly increasing packaging speed (which typically ranges from tens to hundreds of bags per minute depending on the material) and effectively reducing labor costs and human error.

②High-Precision Counting, Stable and Reliable

To address the issues of missed or over-counting that are common with small materials, the vibratory plate counting and packaging machine employs various technologies to ensure counting accuracy.

Multiple Counting Technologies: Commonly employs fiber optic sensing, light curtain counting, or intelligent vision dual-mode counting systems, coupled with precise counting control devices, resulting in extremely high counting accuracy (some high-end models can control errors within ±0.1%).

Error Prevention and Re-inspection Mechanisms: Features include material shortage waiting and empty package detection functions. Many models also include double re-inspection or are equipped with high-precision weight sorting scales, automatically rejecting defective products to ensure accurate quantity in each bag.

③High Customization and Compatibility

Due to the wide variety of packaging materials, this type of equipment typically possesses highly customized attributes.

Custom-Made Vibratory Feeders: Vibratory feeders and linear guides are custom-made according to the shape and size of the specific materials, ensuring smooth arrangement of irregularly shaped and standard parts without jamming.

Flexible Combination Configurations: The machine can be equipped with one or more (e.g., 2-10) vibratory feeders, capable of packaging materials of a single specification individually or mixing various different accessories in preset proportions (e.g., furniture assembly accessory kits).

Diverse Sealing Methods: Supports various bag types including three-side seal and back seal, and can be equipped with coding machines, labeling machines, finished product conveyors, and other auxiliary devices as needed.

④Intelligent Control and Safety Design

To lower the operating threshold and ensure production safety, modern vibratory disc counting packaging machines have undergone significant optimization in human-machine interaction and safety protection.

PLC Intelligent Control System: Generally adopts a PLC paired with a color touchscreen. The interface is intuitive and supports Chinese and English switching. Parameter settings are simple and quick, and the machine automatically stops and alarms in case of malfunction, displaying the cause for easy maintenance.

Safety Protection Measures: Dangerous parts of the equipment (such as the cutter and heat-sealing area) are equipped with safety protection devices and emergency stop switches. Operation will immediately stop in case of improper operation or malfunction, ensuring the personal safety of operators.

High-Quality Materials: The machine body is mostly made of stainless steel, which is hygienic, easy to clean, corrosion-resistant, and durable.

Machine Details：

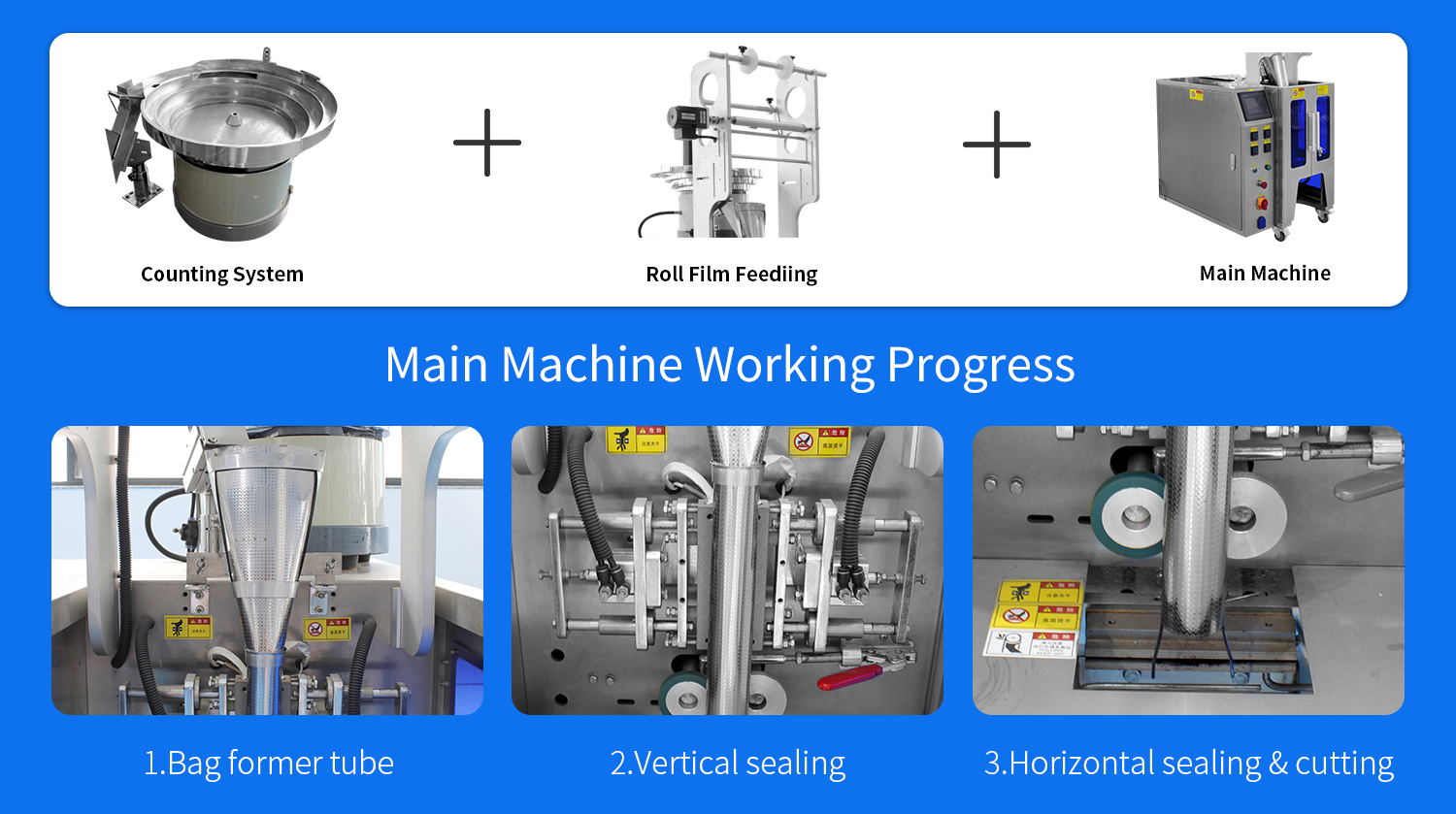

Machine commonly consists of vibrating bowl counting system and the vertical bagging machine.

①Customized vibrating bowl made per product shape to auto feeding with fiber optical counting system for product auto counting.

②Vertical bagging machine automatically completes the entire process of roll film bag making, sealing, and cutting.

Company profile:

Foshan ZHIEN machinery Co., Ltd was established in 2014.

As an experienced automation equipment manufacturer, we were engaged in processes of integrating machine design, R&D, production, sales and maintenance.

We focus on the unmanned packaging environment and provide customized packaging solutions for different industry of food, daily chemical, hardware, healthcare, ect.

Technical Advantages：

Professional Design for Candies & Gummies

This machine is specially optimized for regular and irregular candies, soft gummies and confectionery snacks. The overall structure fits the physical characteristics of such products perfectly, ensuring smooth feeding and stable operation during packaging.

Vibrating Plate Quantitative Counting System

Adopts mature vibrating plate feeding and counting technology. Materials are arranged and conveyed in order through uniform vibration, realizing stable quantitative counting. It features high efficiency and strong adaptability to different sizes of candies.

Anti-damage Gentle Conveying

The soft vibration design avoids fierce collision and extrusion. It effectively prevents candies and gummies from deformation, sticking or surface damage, keeping products intact and maintaining good appearance.

High-efficiency Continuous Production

The whole process from feeding, counting, bag making, filling to sealing is fully automatic. It greatly boosts daily output, saves labor cost and is ideal for mass continuous production of confectionery.

Reliable Constant Temperature Sealing

Independent constant temperature heat sealing system ensures flat, firm and wrinkle-free sealing edges. Good moisture-proof and dust-proof performance can well protect candies from damp and deterioration and extend shelf life.
