VFFS Broth Cooking Oil Liquid Packing Machine

Machine Description：

This VFFS automatic packing machine with customized dosing system, the liquid filling pump enable liquid product automatically feeding, metering, filling and packing into roll film form bags.

It is widely use in food industry for liquid product like broth, soup, oil, sauce, fruit jam, paste, ect. Machine can make various kinds of bag types like pillow bag, gusset bag, linking bags in different size by different models.

Machine Parameter：

Machine Features：

Vertical packaging machines, also commonly known as vertical filling forming sealing (VFFS) machine, are highly efficient and automated packaging equipment. Starting from a roll of film, it automatically complete a series of processes including bag making, metering, filling, sealing, and cutting.

①High Efficiency and Automation

Vertical packaging machines achieve full automation from roll film to finished bags, with extremely high production speeds of 30-80 bags/min with continuous production  time of 12 hours a day without interruption, meeting the needs of large-scale. The entire process requires only a small amount of manual labor, which reducing labor costs and labor intensity.

②Precise Metering and Secure Sealing

The equipment can be equipped with various high-precision metering system that depending on material characteristics (e.g., granules, powders, liquids), options such as combination scales, screw scales, measuring cups, or liquid pumps can be selected to achieve high-precision metering.

Horizontal and vertical sealing temperatures can be independently and precisely controlled by PID (temperature difference within ±1℃), adapting to various packaging materials such as PE, PP, and composite films, ensuring a smooth, secure, and leak-free seal.

③Diverse Packaging Forms and High Adaptability

Vertical packaging machines offer high flexibility, adapting to different product and packaging needs. By changing different forming devices, various bag types can be easily produced, including pillow bags, gusset bags, quad seal stand up bags, ect.

Additional functions such as coding machines, nitrogen-filled preservation, easy-tear openings, and venting holes can be easily integrated to meet diverse market demands.

④Intelligent Control and Convenient Operation

Modern vertical packaging machines generally adopt advanced control systems, simplifying operation and maintenance. Equipped with a touchscreen, parameter settings, fault diagnosis, production counting, and other functions are clearly displayed, making operation simple and intuitive. Besides, an intelligent "no packaging without material" detection function to avoid empty bags and reduce waste.

Machine Details：

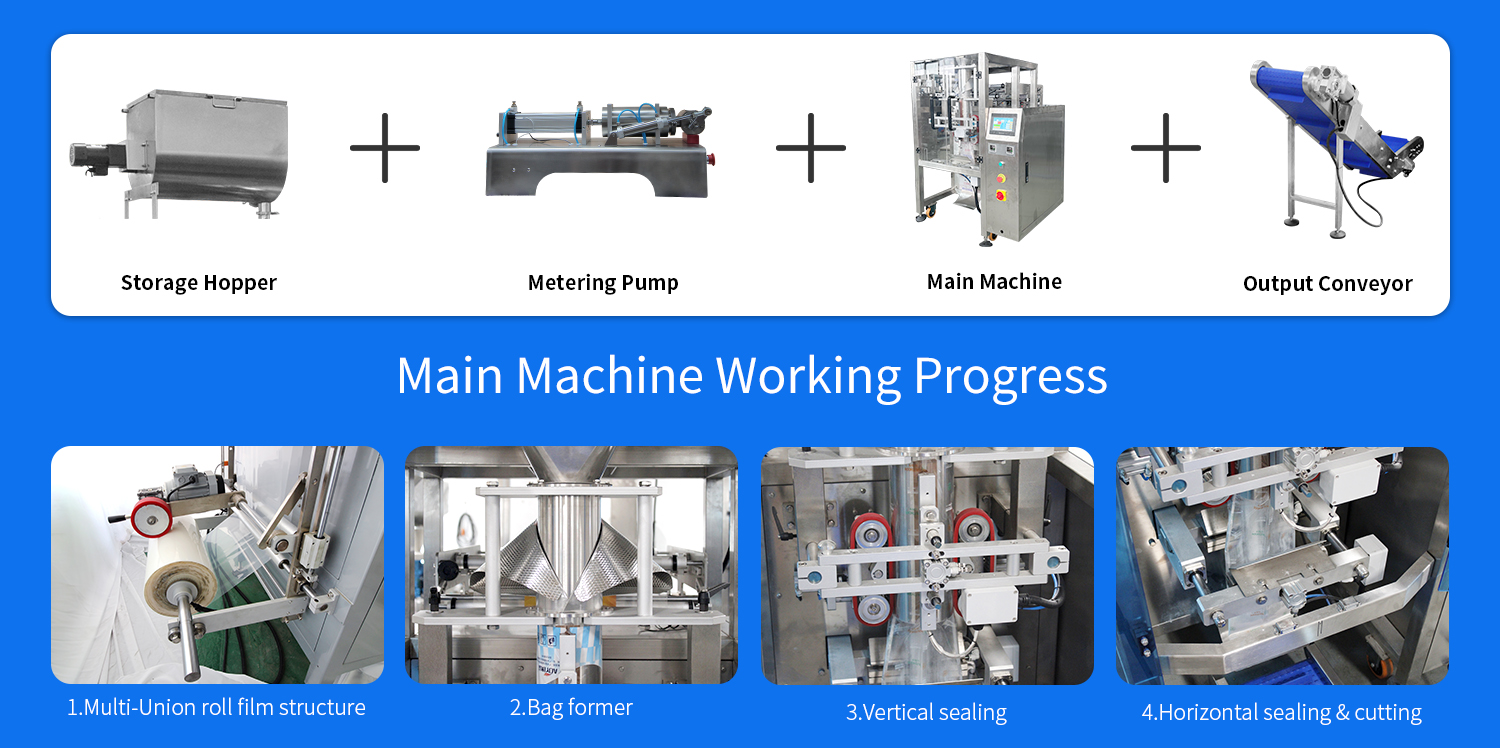

Machine whole set consists of customized filling pump with storage hopper, roll film bagging machine and output conveyor.

①The liquid storage and mixing tank is a key part that connecting the liquid production and packaging process. It is mainly used for temporary storage, heat preservation and homogenization of materials to ensure that the materials can enter the next process in a stable state.

②Customized filling pump based on the periodic change of volume, using reciprocating motion to achieve fluid intake and discharge. It can meet high metering accuracy of +/-1% and a wide flow rate adjustment range.

③Roll film bagging machine automatically completes the entire process of product metering and filling, bag making, sealing, and cutting.

④Output conveyor to convey finished products quickly to avoid piling up and connect to subsequent processes for production continuity.

Company profile:

Foshan ZHIEN Machinery Co, td.is a manufacturer specializing in automatic packaging solution,integrating R&D, design, production and marketingWe independent develope and produce premade bag packing machine, Vffs packing machine, pillow packing machine, filing machine and otherpacking equipment widely used in food, hardware, medical, daily use, agricultural, cosmetics and other industries.

Quality Control & Assurance：

Strict Raw Material & Components Inspection

We adopt a strict supplier screening and evaluation system. All raw materials and core key components are inspected strictly before incoming storage. World-famous brand electrical, pneumatic and servo parts are exclusively adopted to ensure the stability, durability and low failure rate of the whole machine from the source.

Full-Procedure Production Quality Supervision

Every production process follows standardized operating procedures. From mechanical processing, precision fitting to overall assembly, each procedure is inspected record-by-record. Unqualified parts are prohibited from entering the next process, realizing full-process traceability and standardized management.

72 Hours Continuous Aging & Running Test

All finished machines must pass 72-hour continuous no-load operation, material simulation running test, packaging accuracy calibration and sealing tightness inspection before delivery. We strictly check every function and performance index to ensure stable and trouble-free formal production after customer receipt.

Food-Grade Material & Craft Standard

All parts in direct contact with materials adopt food-grade 304 stainless steel and non-toxic anti-stick materials, which are corrosion-resistant, easy to disassemble and clean. The whole machine complies with food safety GMP standard and meets the hygiene requirements of food, pharmaceutical and cosmetic production workshops.

International Standard Compliance & Certification

Our packaging machinery is manufactured in accordance with international industrial standards and fully meets CE certification requirements. All design, safety protection and electrical wiring follow export standard norms, supporting customers’ smooth customs clearance and global market access.

Finished Product Strict Inspection & Standard Packaging

Before shipment, each machine undergoes comprehensive appearance inspection, function debugging and safety performance recheck. Standard export fumigation wooden box packaging is adopted to avoid collision, moisture and damage during long-distance sea and air transportation.

FAQ:

Q1:Are you factory or trading company?

A1:We are factory for automatic packaging machines over 12 years experience.

Q2:How to make sure the machine is suitable?

A2:We have professional engineering team to do customized solutions per yourrequest.

And free testing before order is available for your reference.

Q3:How to ensure the machine quality after order?

A3:We will update the production process & do final testing for you review by videos.

And it is available to arrange quality checking by your side or the third party.
