Zip Lock Bag Oatmeal Dried Fruit Nuts Packing Machine

Machine Description：

This zip lock bag packing machine with customized dosing system, the multi head weigher enable product automatically feeding, weighing, filling and packing into premade pouches.

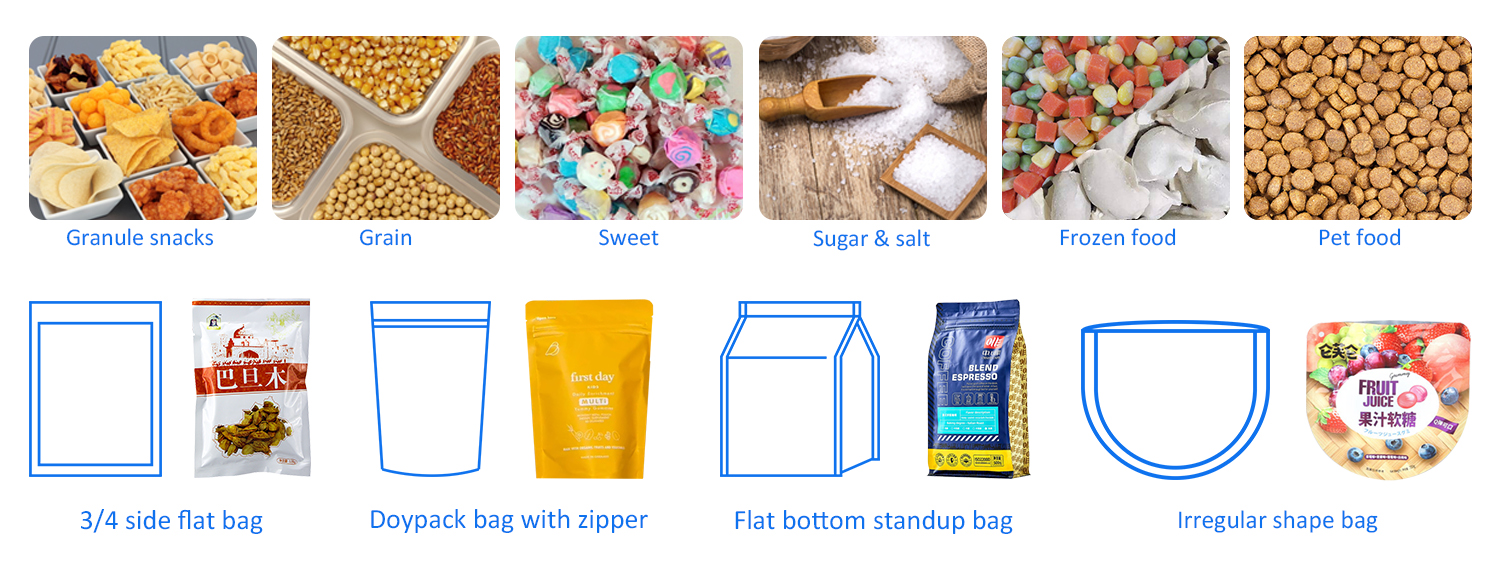

It is widely use in food industry for candies, biscuit, snacks, dried fruit, nuts, beans, oatmeal, ect. It is suitable for various kinds of premade bag like 3/4 side seal flat bag, doypack bag, zip lock bag, flat bottom stand-up bag and special-shaped premade bags.

Machine Parameter：

Machine Features：

The 8-station rotary doypack packaging machine core features are its highly efficient fully automated process, wide adaptability to products and bag types, highly intelligent control, and reliable safety and quality assurance.

①Highly Efficient Fully Automated Process

This equipment integrates multiple steps in the packaging process into a continuous rotary motion. This integrated design improves production efficiency, with packaging speeds typically reaching 20 to 50 bag/min (per product characteristics and bag size).

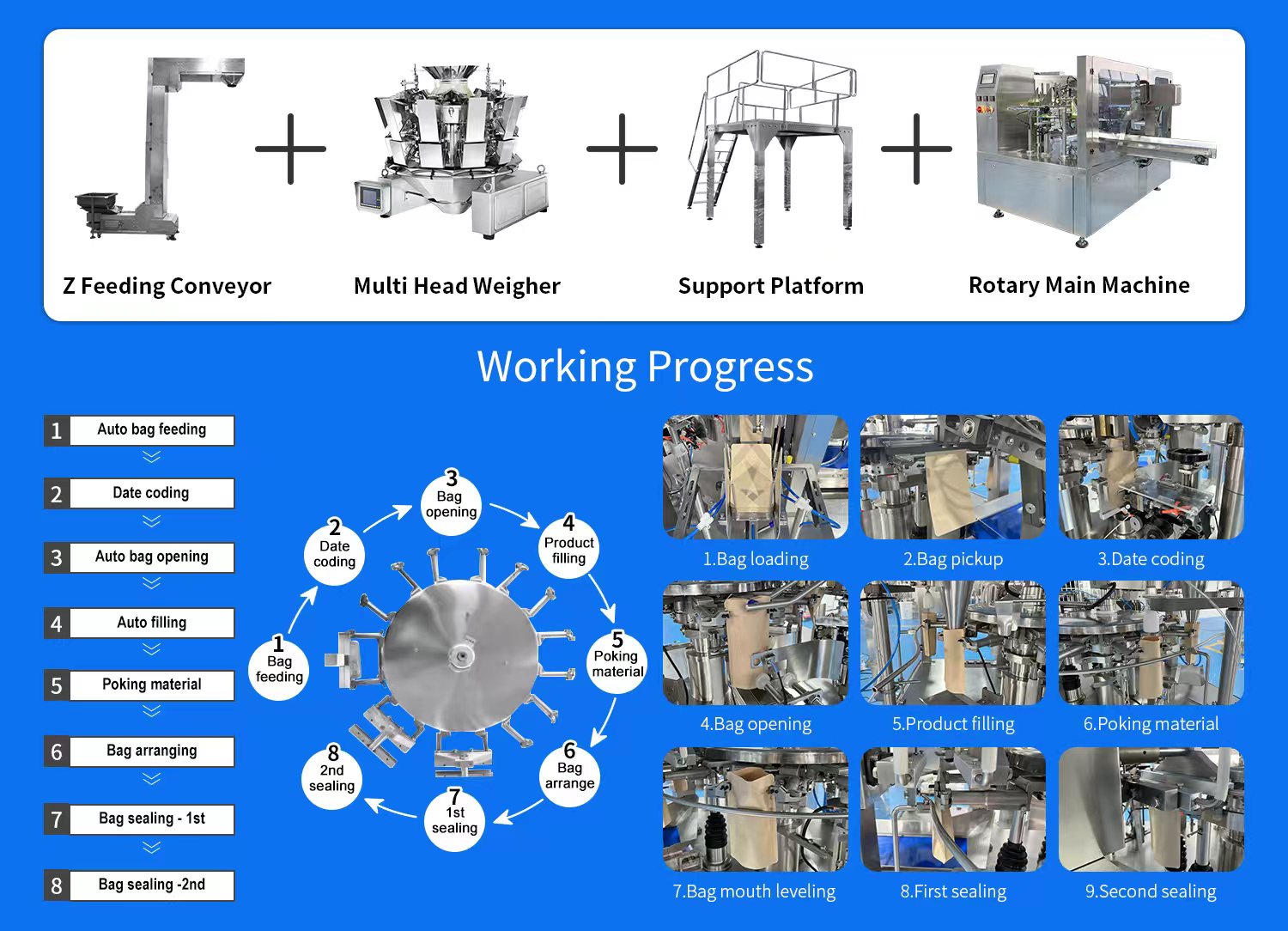

A typical 8-station workflow is as follows:

Bag picking up → Date coding/Zipper opening → Bag opening → Product filling → Spare station → Bag arranging → First sealing → Second sealing & output

②Wide Material and Bag Type Adaptability

A significant advantage of the 8-station rotary doypack packing machine is its strong compatibility, capable of handling various material forms and different styles of packaging bags.

By changing different metering and feeding devices, various materials like granule, powder or liquid products can be accurately packaged. Besides it is capable of handling various pre-made bags, including flat bags, stand-up pouches, zipper bags, ect.

③Intelligent Control and Convenient Operation

Modern 8-station bag feeding machines generally adopt advanced control systems, simplifying operation and maintenance.

Employing PLC and HMI touch screen, operators can intuitively set and monitor various parameters. Machine equipped with servo motor drives, allowing for one-button automatic adjustment of the gripper width at all 8 stations, quickly switching between different bag sizes, greatly saving debugging time. With parameter memory to store production parameters for different products, which can be quickly recalled when changing products, enabling flexible production.

④Reliable Safety and Quality Assurance

To ensure production safety and packaging quality, the equipment incorporates multiple detection and protection mechanisms.

Machine with automatic detection function that no bag, no filling and no filling, no  sealing to avoid material waste. Besides, machine with safety devices that will automatically stop and sound an alarm when there is insufficient air pressure, heating element malfunction, or the protective door is not closed.

Machine Details：

Machine whole set consists of feeding conveyor, multi head scale, support platform and the 8 station rotary doypack packing machine.

①Feeding conveyor with vibrating storage hopper to feed product up to the weighing system continuously.

②Customized multi head scale by using intelligent algorithms to select the optimal combination, which achieve high accuracy of +/-1%.

③A firmly support platform helps operator do routine cleaning and maintenance conveniently.

④Rotary machine automatically completes the entire process from picking pre-made bags to output finished products via a 8 station rotating turntable.

Company Profile：

Established in 2014 and located in Foshan City, Guangdong Province, China, our company is a professional high-tech enterprise engaged in R&D, manufacturing and sales of automatic packaging machinery. Boasting over 15 years of industry experience, we are equipped with 6 standardized production workshops, more than 100 mature machine types and over 1000 successful practical cases.

Technical Advantages：

Professional Custom Design for Dry Food

This premade bag packing machine is specially developed for nuts, dried fruits, oatmeal and other dry granular foods. It adopts gentle feeding mode to effectively prevent materials from being crushed or damaged, well preserving the complete shape and original taste of products.

Fully Automatic Multifunctional Working Process

The machine can automatically finish bag picking, bag opening, material filling, flattening, sealing and finished product discharging. It is compatible with various common premade bags such as stand-up bags, zipper bags and flat bags, realizing high-efficiency unmanned packaging operation.

High-precision Weighing & Metering System

Matched with high-accuracy combined weighing equipment, it achieves stable and accurate quantitative packaging with tiny error. It perfectly meets unified weight standards for food packaging and effectively avoids weight deviation complaints.

Good Moisture-proof & Fresh-keeping Performance

Equipped with excellent heat sealing structure, the sealing edge is firm, flat and tight. It can be equipped with nitrogen filling function on demand, which isolates external moisture and air, effectively extending the shelf life of nuts, dried fruits and oatmeal products.

Our Service:

Pre-sales Service: Customized solutions per packaging request

Technical Consultation and Material Trial Run

We provide detailed market information, packaging material suggestions, and packaging format analysis. We offer sample testing services, allowing customers to verify the feasibility and effectiveness of their solutions before actual operation.

Sales Service: Efficient Delivery, Guaranteed Implementation

Professional Installation and Commissioning

After equipment delivery, we provide manual and videos for guidance to support client on-site installation and operation. Online technical support also available to assist clients. Besides, oversea service can be provided to sent professional technicians to install and commission the equipment on-site, ensuring safe and stable operation.

After-sales Service: Rapid Response, Lifetime Support

Lifetime Technical Support and Maintenance

Provide lifetime repair service. Equipment typically enjoys a one- to two-year warranty period, during which non-human-caused faults are repaired free of charge. Outside the warranty period, we provide lifetime technical consultation and repair services.
